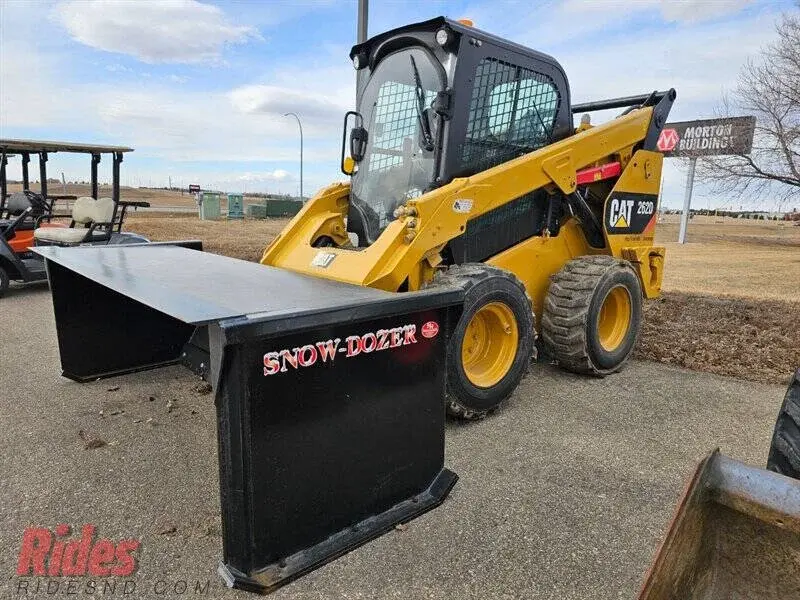

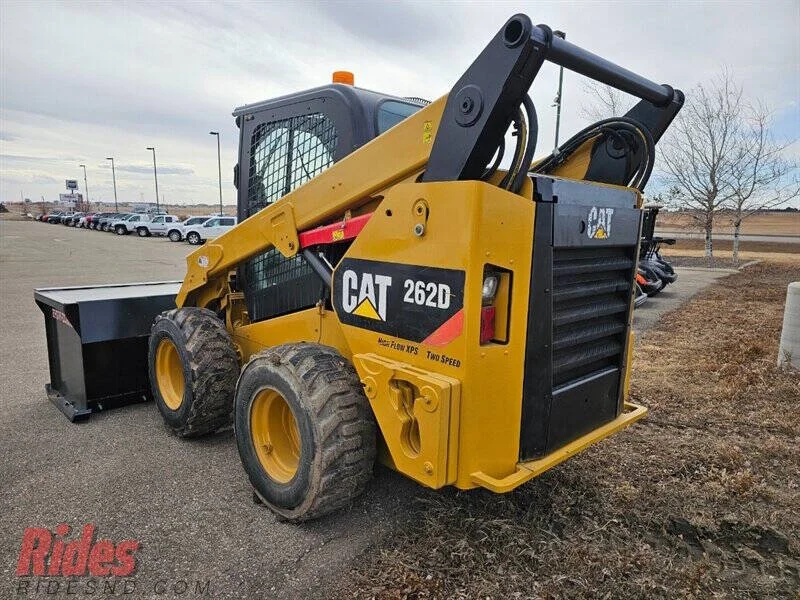

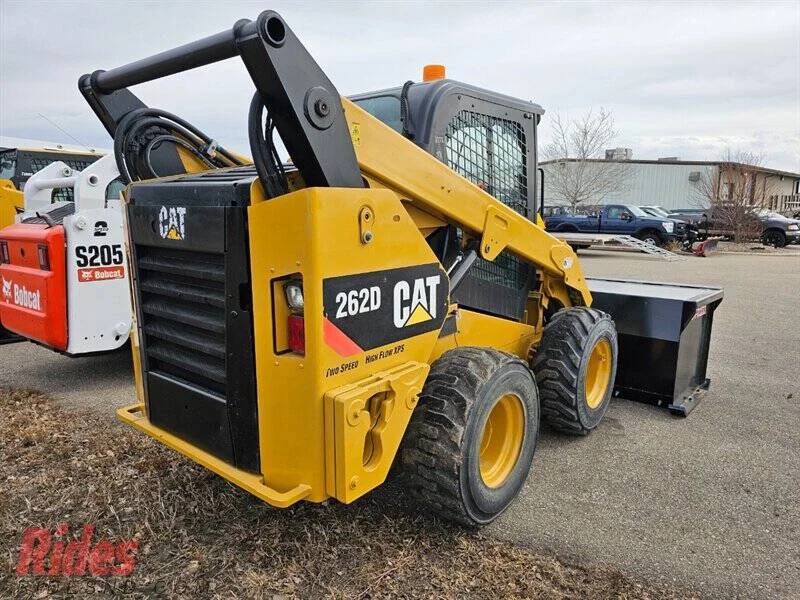

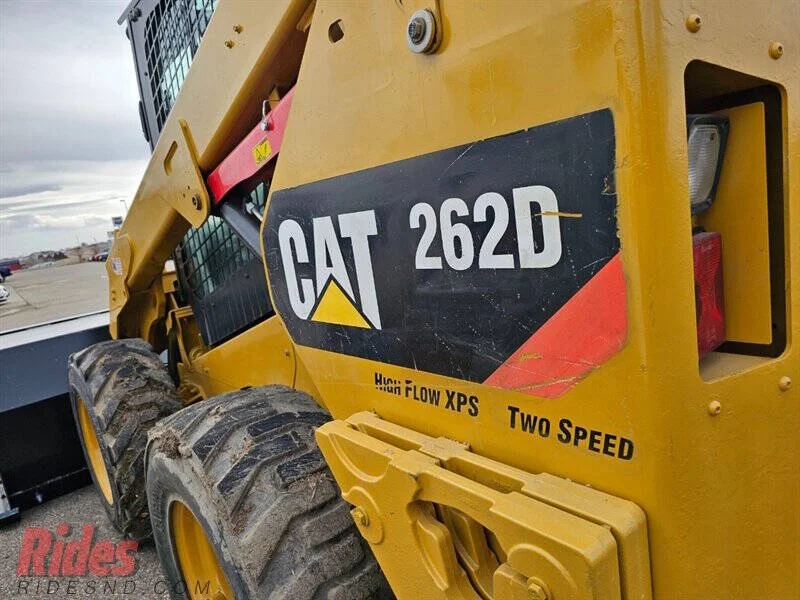

2014 Catepillar 262D

Only 1907 HRs

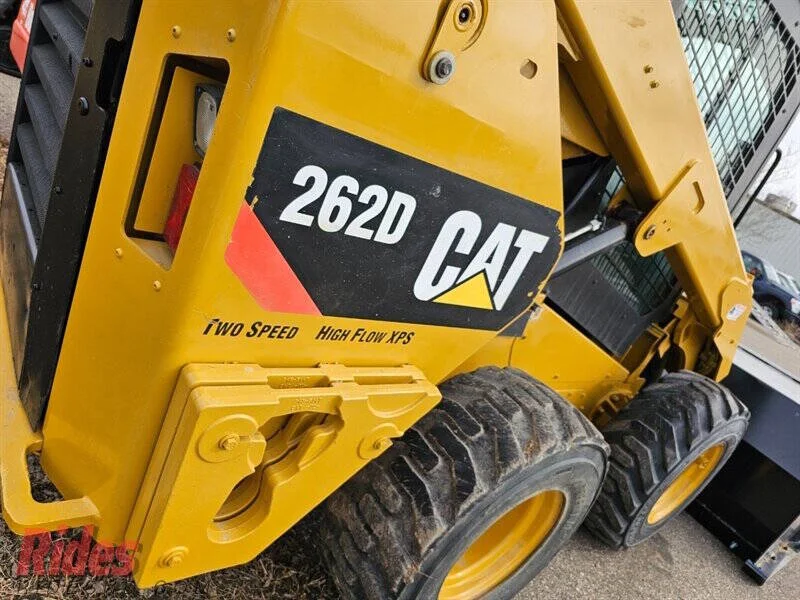

High Flow

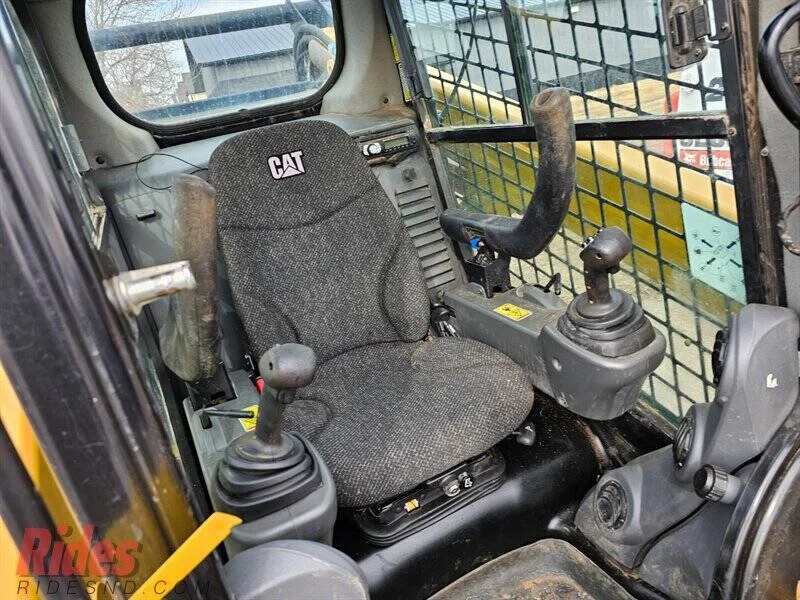

Cab/A/C Heat

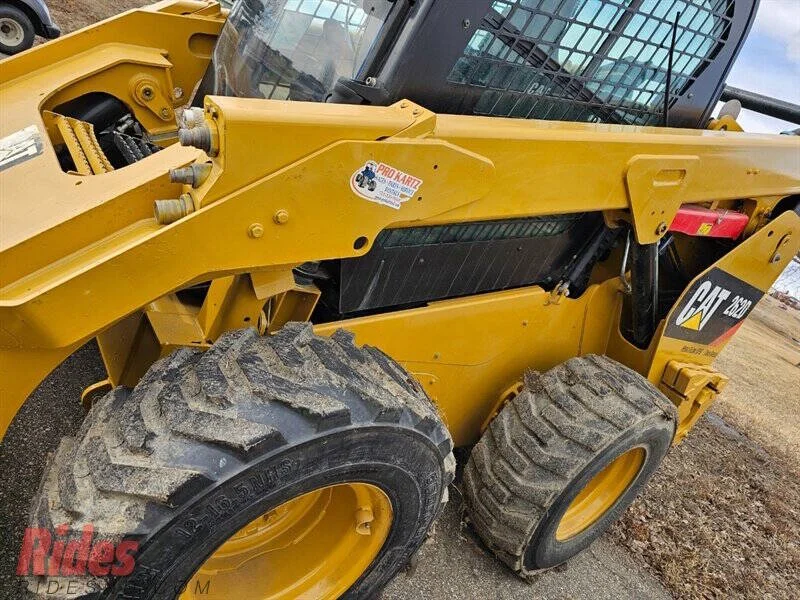

Tires are 75%

Bucket Positioning

Radio

Dimensions

Length With Bucket 12.19ft in

Ground Clearance - 8.9in

Height To Top Of Cab - 6.93ft in

Wheelbase - 4.1ft in

Length W/O Bucket - 9.83ft in

Clearance At Max Lift And Dump - 7.81ft in

Reach At Max Lift And Dump - 30.95in

Clearance At Maximum Lift And Dump - 93.7in

Departure Angle - 26 degrees

Bucket Pin Height - Carry Position - 7.9in

Height - Top Of Cab - 6.93ft in

Hinge Pin Height - Fully Raised - 124.89in

Length - With Bucket On Ground - 146.2in

Length - Without Bucket - 117.9in

Maximum Dump Angle - 51 degrees

Maximum Overall Height - 157.81in

Maximum Reach - With Arms Parallel - 50.9in

Rack Back Angle - Maximum Height - 84 degrees

Bucket Pin Height - Maximum Lift - 10.41ft in

Bucket Pin Reach - Maximum Lift - 15.5in

Bumper Overhang - Rear Axle - 42.6in

Turn Radius From Center - Rear - 71.1in

Turning Radius From Center - Inc Bucket - 85.87in

Turning Radius From Center - Machine Rear - 71.07in

Vehicle Width Over Tires - 66in

Wheel Base - 4.1ft in

Reach - Maximum Lift/Dump - 30.9in

Turn Radius From Center - Bucket - 85.9in

Turn Radius From Center - Coupler - 55.2in

Operating Specifications

Rated Operating Capacity - 2700lb

Rated Operating Capacity With Optional Counterweight - 2950lb

Breakout Force - Tilt Cylinder - 7355lb

Tipping Load - 5400lb

Engine

Engine Model - Cat C3.3B DIT (turbo)

Gross Power - 74.3hp

Net Power - 72.9hp

Max Torque - 195.5lb ft

Torque Measured @ 1500rpm

Displacement - 203cu in

Bore - 3.7in

Stroke - 4.7in

Operational

Operational Weight - 8011.6lb

Fuel Capacity - 24.9gal

Cooling System Fluid Capacity - 3.7gal

Hydraulic System Fluid Capacity - 13.8gal

Max Speed - 7.7mph

Chain Box Fluid Capacity - Each Side - 3.4gal

Tire Size - 12 × 16.5

Operating Voltage - 12V

Alternator Supplied Amperage - 80amps

Power Train

Travel Speed Forward - 7.7mph

Travel Speed Reverse - 7.7mph

Travel Speed Reverse - 2-Speed Option - 11mph

Travel Speed Forward - 2-Speed Option - 11mph

Weights

Operating Weight - 8011lb

Hydraulic

Pump Flow Capacity - 32gal/min

Hydraulic System

Hydraulic Flow (1) - Standard

Hydraulic Flow (2) - High Flow XPS

Loader Hydraulic Flow (1) - 23 gal/min

Loader Hydraulic Flow (2) - 32 gal/min

Loader Hydraulic Pressure (1) - 3335 psi

Hydraulic Power - Calculated (1) - 44hp

Loader Hydraulic Pressure (2) - 4061 psi

Hydraulic Power - Calculated (2) - 76hp

Service Refill Capacities

Cooling System - 3.7gal

Fuel Tank - 24.8gal

Hydraulic Tank - 10.3gal

Engine Crankcase - 3gal

Hydraulic System - 13.7gal

Chain Box - Each Side - 3.3gal

Cab

Rops - ISO 3471:2008

Fops - ISO 3449:2005 Level I

Fops Level Ii - ISO 3449:2005 Level II

Super Clean well maintained machine

Full service and inspection.
