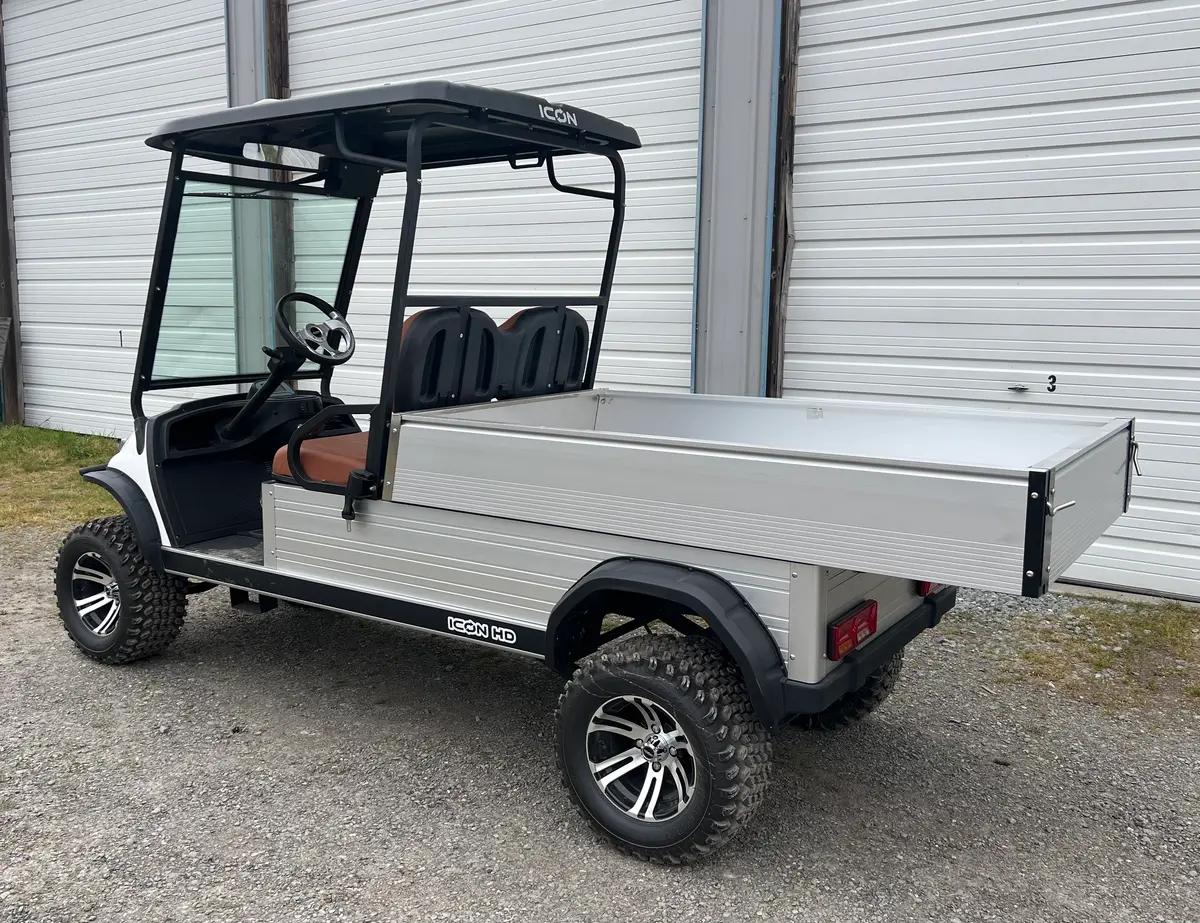

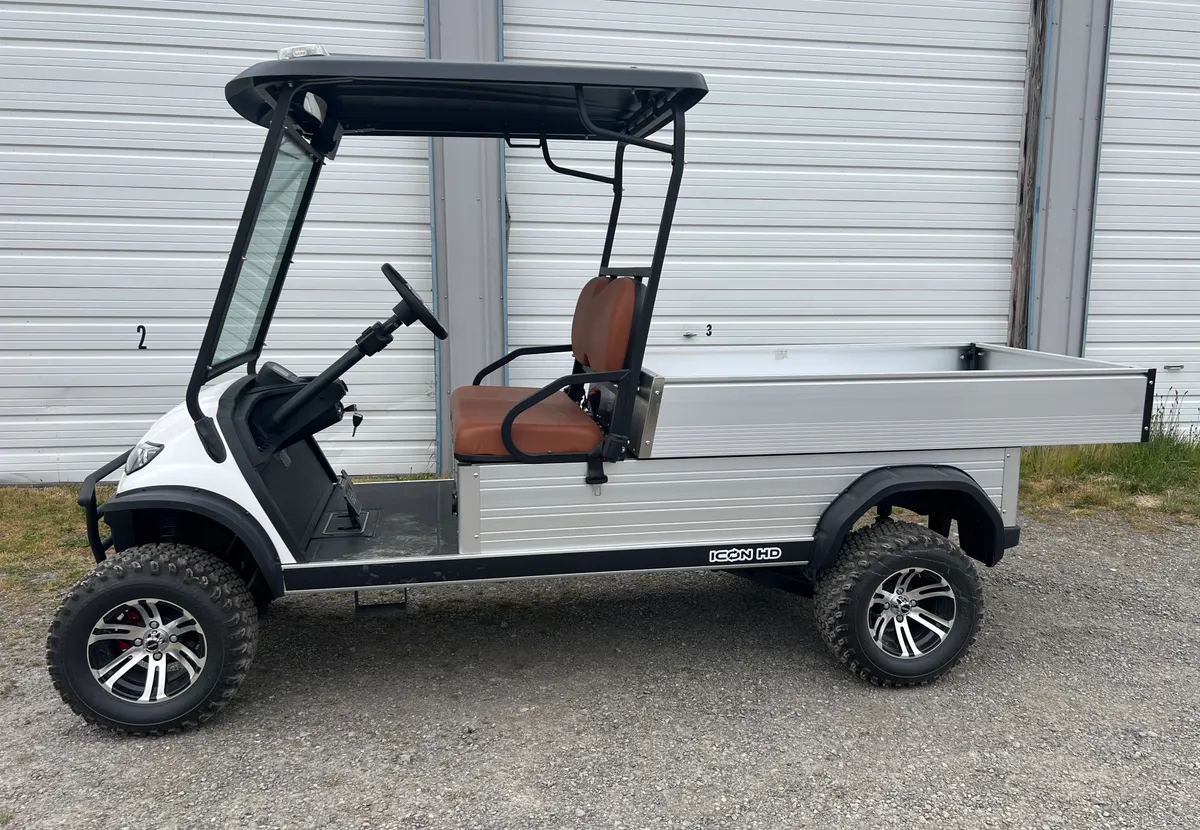

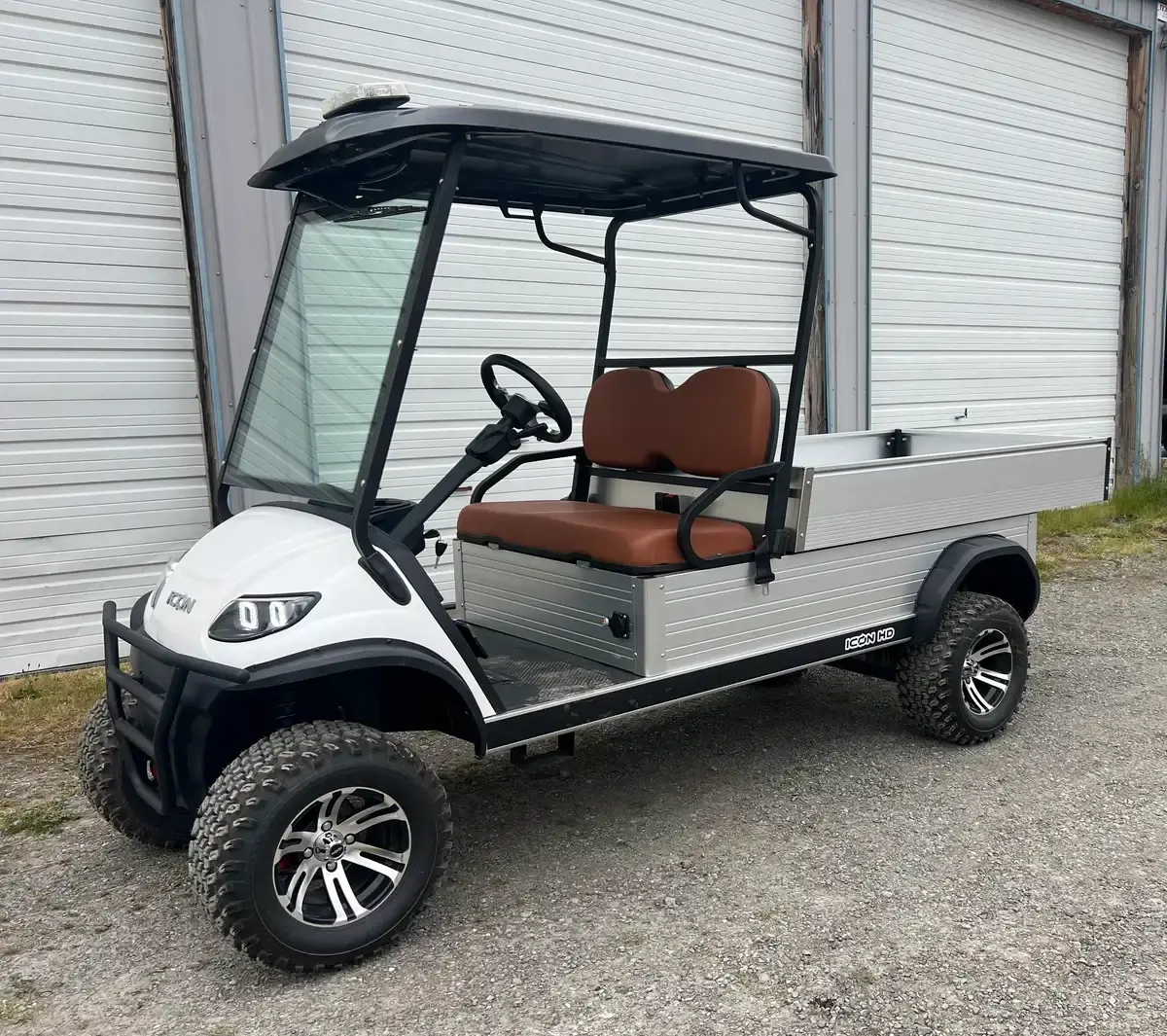

The ICON Heavy Duty i20UL-HD is the embodiment of utility and style!

Working in an area that requires heavy duty performance? Look no further than the i20UL-HD. The i20UL-HD is loaded with a 6′ Swiss Cargo Box and 23×10.5″ ply lifted tires! This utility golf cart exceeds all cargo needs and comes standard with a 70V/105AH ECO Lithium battery, a 5KW motor, and a 450 AMP controller to guarantee a heavy duty performance!

• Colors Available: White • Street Legal LSV Option: Upgrade Available with 17 Digit VIN • Steering Mechanism: Self-Adjusting Rack and Pinion • Suspension (Front/Rear): Heavy Duty Coil Over Shocks • Tires: DOT 205/50 - 10”/6-ply Tires - Lifted: 23x10.5 4 ply • Wheels & Tires: Steel Rims Standard with 205/50 - 10”/6-ply Tires - Lifted: 23x10.5 • Drivetrain: 16:1 High Speed Rear Axle • Ground Clearance: 5” Standard - Lifted: 9” • Width: 49” Standard • Total Vehicle Capacity: 2 people • Warranty: 2 year limited cart warranty. Eco Lithium Battery - 8 year limited warranty (3 year full / 5 year pro-rated) • Overall Height: 71” Standard - Lifted: 82” • Curb Weight: 1440 lbs • Payload: 1200 lbs (excludes passengers) • Tow Capacity: 2000 lbs • Turning Radius: 120” • Overall Dimensions LxWXH: 144inx48inx84in • Motor Type: 5kW • Controller: 450 Amp Programmable Controller • Speed: Standard Speed 19 mph (programmable up to 25 mph) 48-70A Capability • Battery: 70V/105Ah Eco Lithium • Charger: Onboard - 15 Amp 120V • Battery Level Indicator: Digital • Speedometer Package: Included • Chassis: Heavy Duty Aluminum Body • Utility Component Dimensions: 6’ Utility Bed • Canopy: Top Molded Black Top with High Strength Aluminum Frame • Water Resistant Seats: Included - Brown • Metal Front Bumper/Brushguard: Included • Rear Body Finish: Sturdy Aluminum with 2” Tow Receiver • Full Light Package: LED Headlights with Hi/Low, Tail Lights, Brake Lights, Rev Buzzer, Turn Signal • Seat Belts: Lap Belts - Included • Hazard Switch: Included • USB Power Source: Dual, included • Center Mirror: Included • Brakes: 4 Wheel Premium Hydraulic Disc Brakes • Park Brake: Electronic Motor Brake • Gear Selection: Forward / Neutral / Reverse • Windshield: Solid AS1 DOT Safety Glass Windshield with Wiper • LED Safety Light/Strobe with Toggle Switch
