Average golf cart dimensions
Golf cart dimensions vary most by seating capacity. A standard 2-passenger cart runs about 92 to 94 inches long, while a 6-passenger model can stretch past 148 inches. Width stays surprisingly consistent across most carts at 47 to 55 inches, and height typically falls between 67 and 75 inches before any lift kit is added. These numbers matter whether you're buying, storing, or hauling a cart.
| Cart type | Length | Width | Height | Avg. weight (electric) |
|---|---|---|---|---|
| 2-passenger standard | 92 – 94 in | 47 – 48 in | 67 – 75 in | 900 – 1,100 lbs |
| 4-passenger standard | 108 – 120 in | 47 – 52 in | 71 – 75 in | 1,070 – 1,500 lbs |
| 4-passenger lifted | 113 – 114 in | 49.5 – 51 in | 80 – 83 in | 1,100 – 1,500 lbs |
| 6-passenger standard | 133 – 148 in | 47 – 55 in | 72 – 82 in | 1,200 – 1,800 lbs |
| 6-passenger lifted | 146 – 152 in | 49 – 55 in | 81 – 87 in | 1,300 – 1,900 lbs |
| 8-passenger / limo | 170+ in | 50 – 55 in | 78 – 85 in | 1,800 – 2,500 lbs |
| Utility / work cart | 95 – 110 in | 45 – 62.5 in | 47 – 72 in | 800 – 1,400 lbs |
Golf cart length by seating capacity
Length is the dimension that changes most as you add passengers. Every additional row of seating adds roughly 15 to 20 inches to a cart's overall length, which directly affects storage space, trailer requirements, and path clearance.
| Configuration | Typical length | Length in feet |
|---|---|---|
| 2-passenger | 92 – 94 in | ~7.7 ft |
| 4-passenger | 108 – 120 in | 9 – 10 ft |
| 6-passenger | 133 – 148 in | 11 – 12.3 ft |
| 8-passenger / limo | 170+ in | 14+ ft |
A 2-passenger cart like the E-Z-GO TXT measures 93 x 47 x 67.5 inches, while the Club Car Onward 2P comes in at 92 x 48.75 x 71 inches. Both fit comfortably in a standard single-car garage with room to spare.
Step up to a 4-passenger model and the Club Car Onward 4P (non-lifted) stretches to 108 x 48.75 x 71 inches. A 6-passenger version of the same cart grows to 143 x 48.75 x 75 inches, pushing past the 11-foot mark.
At the extreme end, the Cushman Shuttle 8 reaches 171.3 inches (over 14 feet). Limo and shuttle configurations like these require dedicated storage space and larger trailers.
Keep in mind that roofs often extend a few inches beyond the cart body. Measure from the front of the roof overhang to the rear of the body when checking garage depth or trailer length, not just the listed frame dimensions.
Golf cart width
Width is the most consistent dimension across cart types. Most standard golf carts measure between 47 and 55 inches wide, making them narrow enough to pass through standard gates and pathways with careful planning.
| Cart type | Typical width | Width in feet |
|---|---|---|
| 2-passenger standard | 47 – 48 in | ~4 ft |
| 4-passenger standard | 47 – 52 in | 3.9 – 4.3 ft |
| 4-passenger lifted | 49.5 – 51 in | 4.1 – 4.25 ft |
| Utility / LSV models | 55 – 62.5 in | 4.6 – 5.2 ft |
| Street-legal (LSV/NEV) | 55 – 69.5 in | 4.6 – 5.8 ft |
Standard carts comfortably pass through most residential gates, which typically open to 48 to 60 inches. However, lifted carts with wider tires and utility or street-legal (LSV/NEV) models can push past 55 inches, making gate clearance tighter.
The Club Car CRU NEV, for example, is 69.5 inches wide, compared to the standard Onward's 48.75 inches. If you're buying a street-legal cart, measure your gate and driveway paths before assuming a standard cart's width applies.
Adding aftermarket accessories like side mirrors, grab bars, or rear flip seats can increase your cart's effective width. Always measure with accessories installed before checking clearances.
Golf cart height and lift kit impact
Height is often the most overlooked dimension, especially once a lift kit is installed. A standard cart typically stands 67 to 75 inches tall. Add a lift kit and that jumps to 80 to 87 inches or more, which can create clearance problems in garages and carports.
| Configuration | Typical height | Clearance vs. 84-in garage door |
|---|---|---|
| 2-passenger standard | 67 – 75 in | 9 – 17 in to spare |
| 4-passenger standard | 71 – 75 in | 9 – 13 in to spare |

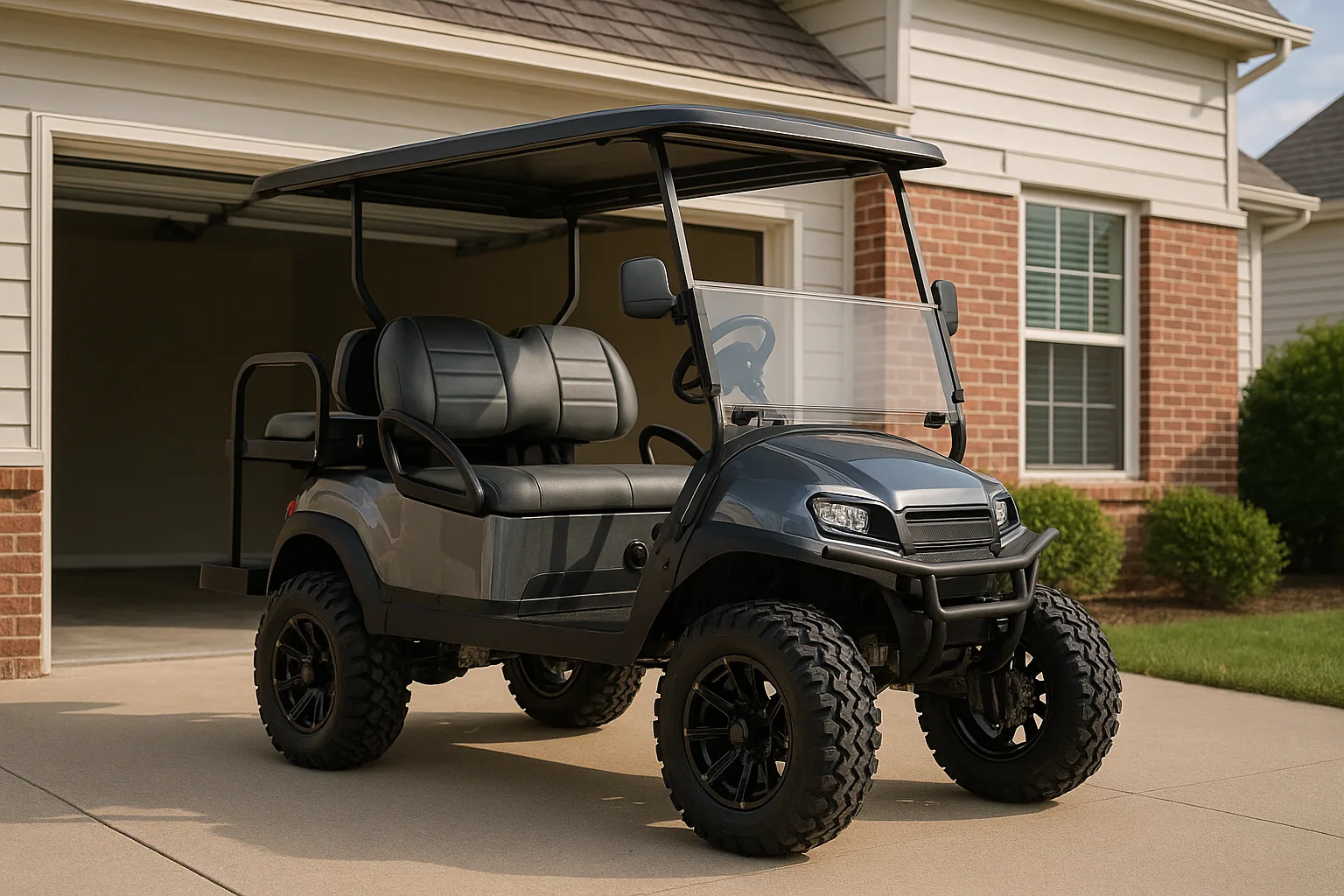

| 4-passenger lifted | 80 – 83 in | 1 – 4 in to spare |
| 6-passenger lifted | 81 – 87 in | 0 – 3 in to spare (tight or no fit) |
Standard garage door openings are approximately 84 inches (7 feet) tall. A non-lifted cart clears this easily with 9 to 14 inches of headroom. A lifted 4-passenger cart at 80 to 83 inches leaves just 1 to 4 inches of clearance, and a lifted 6-passenger at 87 inches may not clear at all.
Lift kits typically add 6 to 10 inches of height. Larger tires contribute some of that gain, but the suspension lift itself accounts for most of it. Ground clearance also increases, going from roughly 4.5 inches on a stock cart to about 6.4 inches on a lifted model, which is useful for off-road terrain and ramp loading.
If you're buying a lifted cart, measure your garage door opening height before committing. A difference of just 2 to 3 inches can mean you're parking outdoors.
Golf cart weight
Golf cart weight matters most when you're towing, loading onto a truck bed, or selecting a trailer. Electric carts are heavier than gas models because of the battery pack, often by 200 to 300 pounds or more.
| Configuration | Gas weight | Electric weight (lead-acid) |
|---|---|---|
| Club Car Onward 4P non-lifted | 795 lbs | 1,070 lbs |
| 2-passenger standard (general) | 600 – 800 lbs | 900 – 1,100 lbs |
| 4-passenger standard (general) | 750 – 1,000 lbs | 1,070 – 1,500 lbs |
| 6-passenger standard (general) | 900 – 1,200 lbs | 1,200 – 1,800 lbs |
The weight difference comes almost entirely from the battery pack. A lead-acid battery set can weigh 250 to 500 pounds on its own. Lithium battery packs are dramatically lighter, often reducing total cart weight by 100 to 200 pounds compared to lead-acid equivalents.
Gas and electric carts share the same body dimensions. The powerplant choice does not affect length, width, or height, only weight. This matters when choosing a trailer or checking truck bed capacity, but not when measuring for garage clearance.
Brand-specific model dimensions
Major brands follow similar sizing patterns, but specific models vary enough that it's worth checking exact specs before buying. The table below covers popular models from Club Car, E-Z-GO, and Yamaha. For a deeper look at how these brands compare on features and value, see our golf cart buying guide.
| Brand / model | Seating | Length (in) | Width (in) | Height (in) |
|---|---|---|---|---|
| Club Car Onward 2P | 2 | 92 | 48.75 | 71 |
| Club Car Onward 4P (non-lifted) | 4 | 108 | 48.75 | 71 |
| Club Car Onward 4P (lifted) | 4 | 114 | 49.5 | 80.5 |
| Club Car Onward 6P (non-lifted) | 6 | 143 | 48.75 | 75 |
| Club Car XRT 800 (utility) | 2 | 100 | 45 | 47 |
| E-Z-GO TXT | 2 | 93 | 47 | 67.5 |
| Cushman Shuttle 8 | 8 | 171.3 | ~55 | ~82 |
Utility carts like the Club Car XRT 800 stand out for their low profile at just 47 inches tall, since they lack an enclosed cab. LSV and NEV models from the same brands can be significantly wider, with some reaching 62.5 to 69.5 inches, so never assume a street-legal version shares dimensions with the standard model.

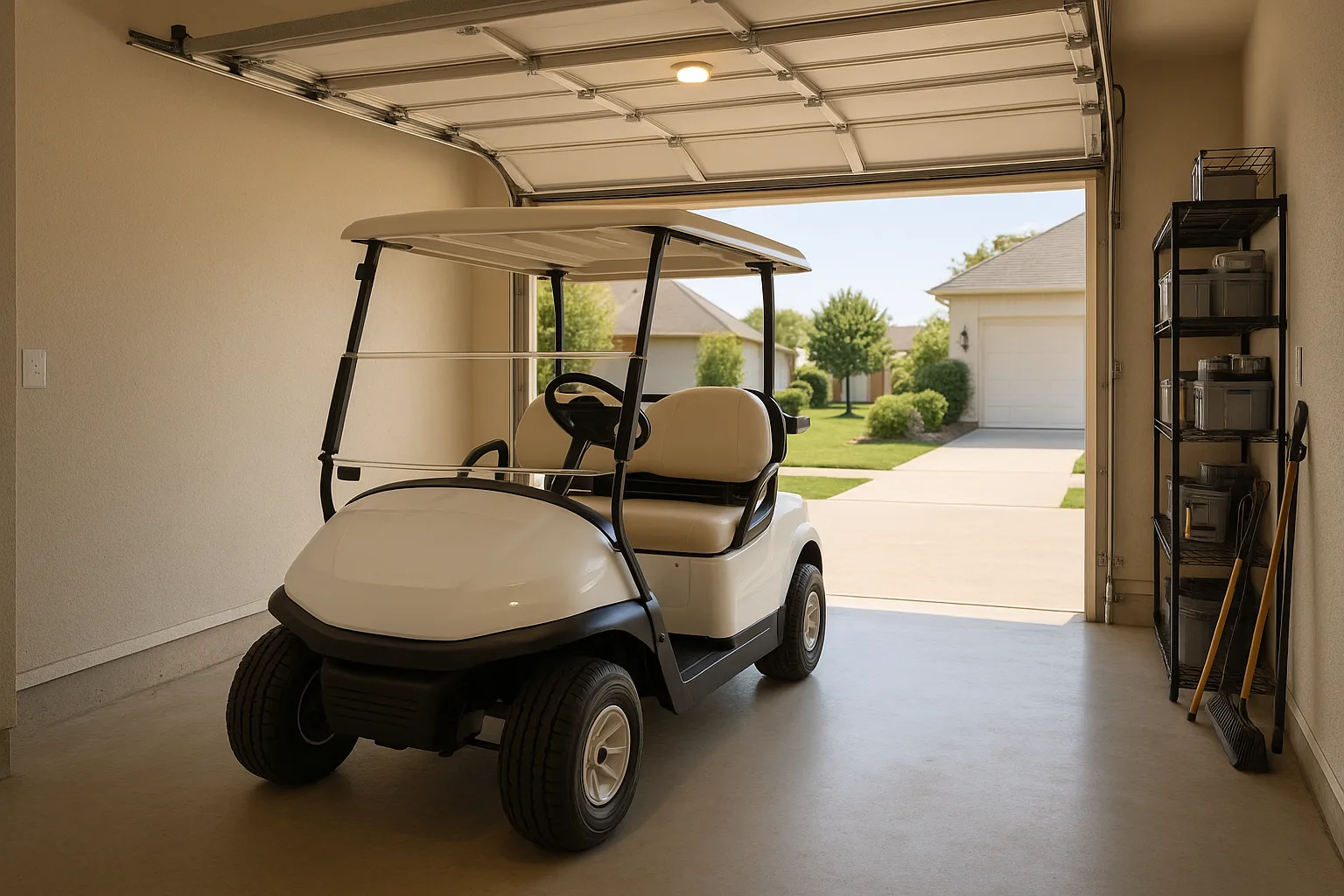

Garage fit and storage guide
Most standard 2- and 4-passenger carts fit in a single-car garage without issue. The real challenges come with lifted carts, 6-passenger models, and limited floor depth. Here's what to measure before you park.
| Storage location | Typical interior dimensions | Cart fit |
|---|---|---|
| Single-car garage | 12 ft wide x 20 – 22 ft deep | 2P and 4P carts fit easily; 6P is tight |
| Two-car garage | 20 – 24 ft wide x 20 – 22 ft deep | All standard configurations fit |
| 10x10 storage unit | 10 ft wide x 10 ft deep | 2P and 4P carts only |
| 10x15 or 10x20 storage unit | 10 ft wide x 15 – 20 ft deep | 6P and most lifted carts |
| Standard garage door opening | 84 in tall x 96 – 108 in wide | Non-lifted carts clear easily; lifted carts may not |
For garage storage, run through this quick checklist before parking your cart:
- Door height: Measure the opening, not the door itself. Standard openings are 84 inches. Lifted carts at 80 to 87 inches may have only inches of clearance, or none at all.
- Door width: Standard single garage doors are 96 to 108 inches wide. Even a 69.5-inch LSV fits through easily, but side mirrors or accessories may change this.
- Floor depth: A 4-passenger cart at 108 to 120 inches needs at least 10 feet of floor space, plus room to walk around it. A single-car garage at 20 to 22 feet deep handles this with space for storage.
- Turning radius: Club Car models have turning radii between 111 and 116 inches. Factor this in when parking in tight garages or narrow driveways.
If you're renting a storage unit, a 10x10 unit handles most 2- and 4-passenger carts. Upgrade to a 10x15 or 10x20 for 6-passenger or lifted models.
Transporting a golf cart: trailers and truck beds
Hauling a golf cart requires knowing its length and weight before you hook up or load up. The wrong trailer size or truck can make transport impossible or unsafe.
| Transport method | Best for | Notes |
|---|---|---|
| 5x10 utility trailer | 2P and 4P carts | Handles carts up to ~120 in long; widely available for rent at ~$20 – $30 per day |
| 6x12 or larger trailer | 6P and lifted carts | Required for carts 133 in and longer |
| Full-size pickup truck bed | 2P carts (some) | Wheelbase ~75 in; most truck beds with tailgate down reach ~80 in |
For trailer transport, a standard 5x10 utility trailer handles most 2- and 4-passenger carts. Six-passenger models at 133 to 148 inches need a trailer with at least 12 feet of deck space. U-Haul and similar rental companies offer trailers in the right sizes for around $20 to $30 per day.
Loading a golf cart into a pickup truck bed is possible for some 2-passenger carts, but it's tight. The average front-to-rear-axle measurement on a golf cart is around 75 inches, and most full-size truck beds (including the tailgate laid flat) reach about 80 inches. Width is the other concern: a 47- to 48-inch cart clears most truck beds, but a wider utility or LSV model may not fit between the wheel wells.
How customizations change dimensions
Aftermarket modifications can significantly change a cart's size footprint. Plan ahead if you're customizing before buying a trailer, measuring a garage, or checking gate clearance.
| Modification | Dimension affected | Typical change |
|---|---|---|
| Lift kit (4 – 6 inch) | Height | +4 – 6 in |
| Lift kit (8 – 10 inch) | Height | +8 – 10 in |
| Larger tires (e.g., 23 – 25 in) | Height and width | +2 – 4 in height; +1 – 3 in width per side |
| Extended rear seat / flip seat | Length | +12 – 20 in |
| Extended roof | Effective length | +6 – 12 in overhang |
| Stretched limo frame | Length | +24 – 48 in |
Lift kits are the most impactful modification for height clearance. A 6-inch lift on a standard 71-inch cart brings it to 77 inches; a 10-inch lift pushes it to 81 inches or higher once larger tires are added.
Extended roofs add to a cart's effective length beyond what the body measurement shows. When checking whether your cart fits in a garage or on a trailer, always measure with the roof installed and account for any overhang past the rear bumper.
Frequently asked questions
How wide is a standard golf cart?
Most standard golf carts are 47 to 52 inches wide. Lifted models and utility carts can reach 55 inches or more, and street-legal LSV/NEV models can be as wide as 69.5 inches.
How long is a 4-seater golf cart?
A 4-passenger golf cart is typically 108 to 120 inches long (9 to 10 feet). Lifted 4-passenger versions run slightly longer at 113 to 114 inches due to suspension and tire changes.
Will a golf cart fit in my garage?
A standard 2- or 4-passenger cart fits in most single-car garages. The key measurements are door height (standard is 84 inches) and floor depth (a standard single garage is 20 to 22 feet deep). Lifted carts at 80 to 87 inches tall may not clear a standard door.
Will a golf cart fit in a pickup truck bed?
Some 2-passenger carts can load into a full-size pickup truck bed with the tailgate down, but clearance is very tight. The cart's wheelbase is roughly 75 inches and most truck beds reach about 80 inches with the gate down. Width and weight capacity are additional concerns.
What trailer size do I need for a golf cart?
A 5x10 utility trailer works for most 2- and 4-passenger carts. Six-passenger and limo carts need a 6x12 or larger trailer. Trailer rentals typically cost $20 to $30 per day.
Does a lift kit significantly change dimensions?
Yes, primarily in height. A lift kit typically adds 6 to 10 inches to overall height. Width increases slightly if larger tires are part of the lift package. Length is not meaningfully affected by a lift kit alone.
Do gas and electric carts have the same dimensions?
Yes. Gas and electric versions of the same model share identical body dimensions (length, width, and height). The only significant difference is weight. The Club Car Onward 4P gas version weighs 795 pounds, while the electric version weighs 1,070 pounds. If you're comparing today's top electric golf cart options, keep in mind that lithium-powered models will also weigh significantly less than their lead-acid equivalents.
Do golf cart dimensions affect street-legal status?
Width and speed are the main factors in LSV eligibility. Street-legal golf carts (Low-Speed Vehicles) are often wider than standard carts, sometimes reaching 55 to 69.5 inches, and must meet federal equipment standards. Dimension requirements vary by state. Check the golf cart laws for your state to understand local street-legal requirements.
How do I accurately measure a golf cart?
- Length: Measure from the front bumper (or front of the roof overhang) to the rear of the body or rear bumper.
- Width: Measure at the widest point, typically across the tires or fenders, not the body panels.
- Height: Measure from the ground to the highest point of the roof, including any roof-mounted accessories.
Where can I store a golf cart with limited space?
A 10x10 storage unit fits most 2- and 4-passenger carts. A 10x15 or 10x20 unit is needed for 6-passenger or lifted models. Covered carports are a practical alternative for lifted carts with height-clearance concerns, since they have no overhead door to clear.
